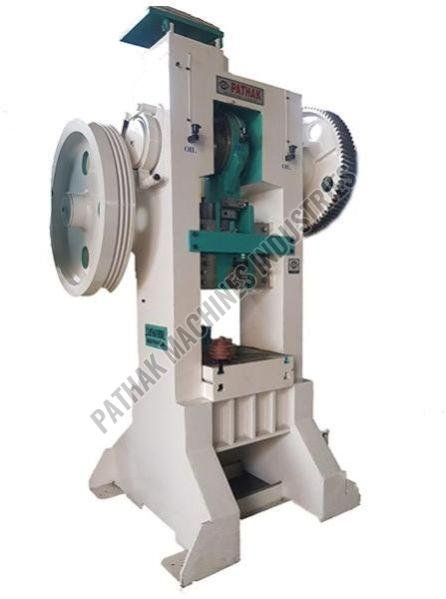

H Type Power Press Machine
| Business Type | Manufacturer, Exporter, Supplier |
| Condition | Good |
| Power | 1-12kw |
| Power Source | Hydraulic |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Voltage
110-440V
Type
H Type Power Press Machines
Country of Origin
India
Usage
Industrial
Specifications
| Model | PP3 30 Tons |
PP5 50 Tons |
PP7 75 Tons |
PP10 100 Tons |
PP15 150 Tons |
PP20 200 Tons |
PP25 250 Tons |
|
| Dia of Crank Shaft | mm | 100 | 115 | 125 | 150 | 175 | 200 | 225 |
| Adjustability of Stroke | mm | 76 | 100 | 100 | 125 | 150 | 150 | 150 |
| Punch Bore in Ram | mm | 31 | 38 | 38 | 45 | 50 | 50 | 57 |
| Width of Bed | mm | 450 | 500 | 600 | 700 | 750 | 800 | 900 |
| Length of Bed | mm | 450 | 500 | 600 | 700 | 750 | 800 | 900 |
| Gear Dia | mm | 600 | 650 | 890 | 960 | 1060 | 1125 | 1200 |
| Fly Wheel Dia | mm | 700 | 800 | 900 | 1000 | 1125 | 1200 | 1275 |
| Gap (Bed to Bottom ) | mm | 350 | 375 | 400 | 450 | 500 | 550 | 600 |
| Stroke per Minute | mm | 60 | 45 | 40 | 40 | 35 | 35 | 35 |
| H.P. Required (1440) | mm | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 |
| Bore in Bed | mm | 140 | 160 | 190 | 220 | 250 | 275 | 290 |
| Weight in kgs (Approx) | mm | 1550 | 2050 | 3300 | 4600 | 6000 | 8400 | 10000 |
