| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Pathak Group |
| Color | Grey |
| Automatic Grade | Automatic |
| Click to view more | |
Product Details

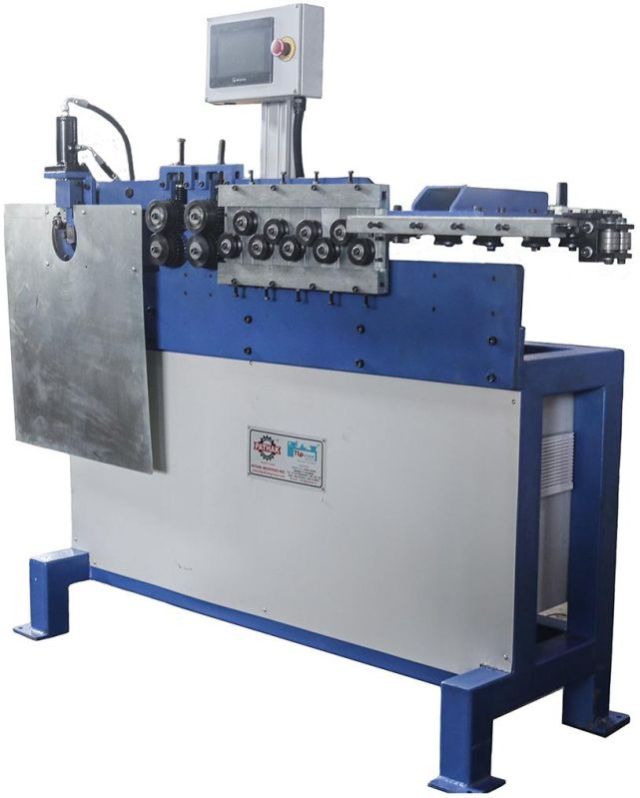

The CNC TMT Ring Making Machine from T.L. Pathak Group is a cutting-edge solution designed for precision and efficiency in the production of TMT rings. Incorporating advanced CNC technology, this machine enables automated and accurate machining processes, ensuring consistency and high-quality output,equipped with servo motors and precision components, the machine offers versatility in producing various sizes and designs of TMT rings. Its user-friendly interface allows for easy programming and control, reducing the need for extensive operator training. The CNC TMT Ring Making Machine reflects T.L. Pathak Group's commitment to innovation and reliability in the manufacturing sector,with a robust construction and attention to detail, this machine is capable of meeting the demanding requirements of TMT ring production, providing manufacturers with a reliable and technologically advanced solution to enhance their efficiency and competitiveness in the market.
Specification
| Model | TLPTMT 06 | TLPTMT 08 | TLPTMT 12 |
| Working Ability | Rebar: ?5-?6 mm | Rebar: ?6-?8 mm | Rebar: ?10-?12 mm |
| Length of Straight Stirrup Side | 80-600 mm | 100-1000 mm | 150-1200 mm |
| Maximum Bending Speed | 52 mtr/min | 32 mtr/min | 25 mtr/min |
| Maximum Bending Angle | 120 | 120 | 120 |
| Length Tolerance | +/- 0.5 mm | +/- 0.5 mm | +/- 0.5 mm |
| Angle Tolerance | +/- 0.5 deg | +/- 0.5 deg | +/- 0.5 deg |
| Total Power | 2.25 KW | 2.25 KW | 3.5 KW |
| Dimension | 16250x685x1425 mm | 16250x685x1425 mm | 16250x685x1425 mm |
| Total Weight | 1200 kg | 1200 kg | 1500 kg |
