CNC Machines
Leading Exporters, Wholesaler and Manufacturers of ARC Mate Light Plasma Cutting Machine and CNC Fiber Laser Cutting Machine from Cuttack.

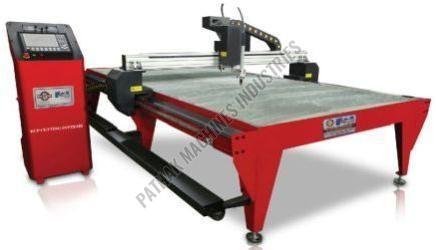

| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Machine Type | Lite Table Top |
| Model No. | Arcmate Lite PC1530PL |
| Advance Feature | Wireless Remote for X-y Axis Alignment |
| Driving Configuration | Dual Drive 86 Series Steper Motor |
| Cutting Head | Plasma with Auto Z-axis Up-down Movement |
| Max.travel Speed | 6000mm/min |
| Input Power | Single Phase 220v, 50 Hz + Plasma (depends On Power Source Selection) |
| Gases Required | Compressed Air |
| Z-axis (torch) Lifting Distance | < 100mm |
| Working Accuracy | +/- 0.15mm |
| Cutting Capacity | 1-16mm (depending On Plasma Rating) |
| Controller | 7'' Wide Colour Screen CNC Automation Dedicated Controller for Plasma and Oxy-fuel. |
| Nesting Software | Fast Cam Basic |
| Cutting Table Base | Standard Water-table with Weight Carrying Capacity of 600kg |
| Req. Installation Area | W 2.4m * L3.7m * H1.5m |

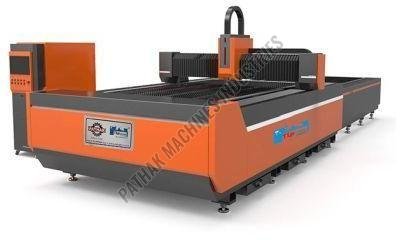

| Business Type | Manufacturer, Exporter, Supplier |
| Working Size | 1500*300mm |
| Watts | 1000W |
| Lubricate System | Yes |
| Auto Lubricate | Automatic |
| Laser Device | Rycus |
| Cutting Head | JiaQiang |
| Motor | Japan FUJI servo |
| Reduser | Japan XINBAO |
| Rail | HSAC(Taiwan) |
| Chiller | XQL |
| Operating System | Cypcut |
| Max Working Size | 3000*1500mm |
| Z Axis | TBI Ball Screw |
| X Working Size | 1500mm |
| Y Working Size | 3000mm |
| Z Working Size | 120mm |
