2.88 Lac - 3.45 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Pathak Group |
| Punching | INDIE 70 |
| 200*12mm (width thickness) punching mold (mm) | 010.5 013.8 017.5 020.5 |
| Click to view more | |
Product Details
Punching Force
35T
Cutting
CWC-200
200*12mm(width thickness) Cutting Force
20T
Bending
200A
200*12mm (width thickness) Bending Force
20T
Motor Power
0.75KW
Voltage
220V 50Hz
Table size : (mm)
700(L)*700(W)*850(H)
Oil delivery
low2 5L/min, high 0.9L/min
Pressure rating
low 0-20, high 20 700kgf cm
Weight
207kg
Packing
wooden box tray packaging
Dimension (mm)
750*960*1220mm

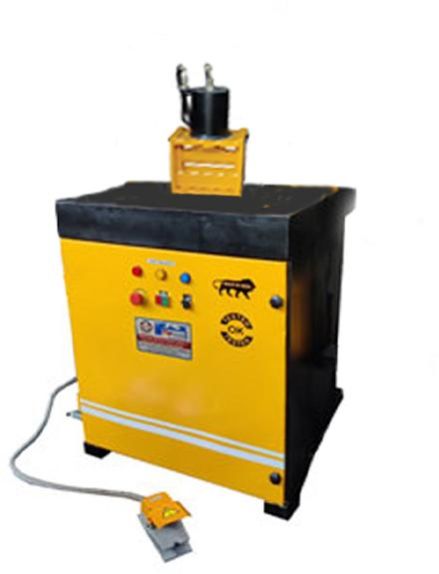

The Busbar Punching Machine offered by TL Pathak Group in India is a specialized tool used for punching holes in copper and aluminum busbars used in switchboards, transformers, and other electrical applications. It is a hydraulic machine that can punch holes of different sizes and shapes quickly and accurately. The machine has a rugged construction and is easy to operate, making it an ideal choice for high-volume production environments. It also has a compact design that saves space and allows for easy transportation. Overall, TL Pathak Group's Busbar Punching Machine is a reliable and efficient solution for punching holes in busbars and improving the productivity of electrical applications.
