| Business Type | Manufacturer, Exporter, Supplier |
| Type | Bar Bending Machines |
| Material | Steel |
| Packaging | Wooden Crate |
| Click to view more | |
Product Details
A list of key benefits of the machine:
-
Heavy-duty gearbox and maintenance-free spindle.
-
High-quality alloy steel parts with heat treatment.
-
Accurate bending with high-grade disc and square steel, ensuring no deformation.
-
Enclosed, moisture-proof electric cabinet to prevent dust and leakage.
-
Reinforced dashboard and rotary oil-way design for longer life and easy maintenance.
-
Dual-side operation allows handling by two users simultaneously.
-
Advanced control panel with an integrated brake system for enhanced safety and durability.
-
Interchangeable bushes for various bending radii and bar diameters, improving productivity and cost-efficiency.

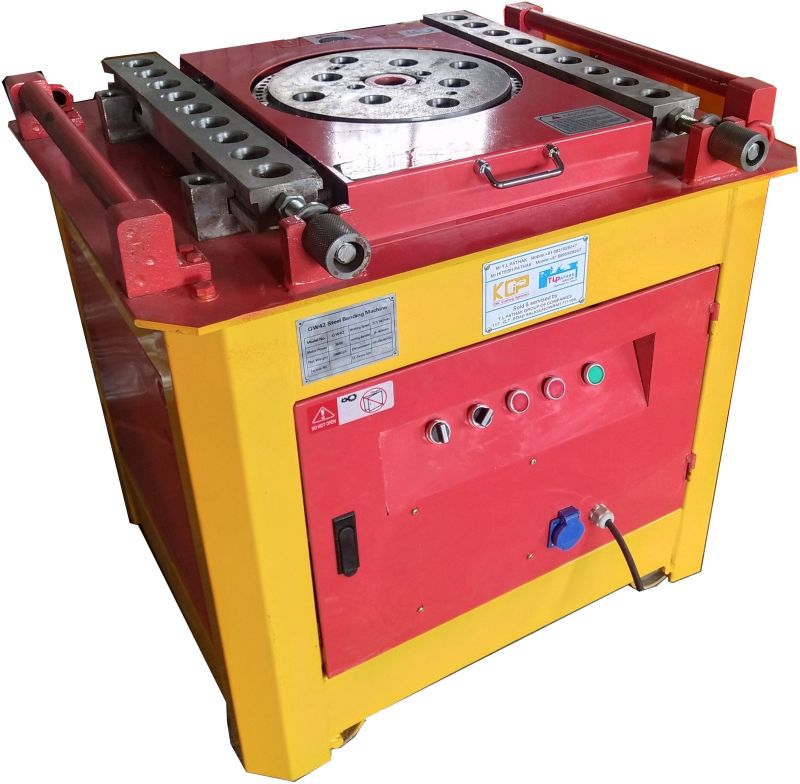

About Machine:
"Our automatic bar bending machines are built to bend bars up to 6 meters long and 42 mm in diameter. Powered by a 4.5kW/6HP copper-wound TEFC induction motor, they ensure smooth, reliable, and long-lasting performance. Ideal for construction sites, these machines offer both manual and automatic controls for safety and convenience."
Specifications Table: Bar Bending Machine
| Model | TLP BB-36 | TLP BB-32 | TLP BB-40 |
| Bending Capacity | 6–36 mm | 6–32 mm | 6–40 mm |
| Bending Force | ≤ 450N/mm² | ≤ 425N/mm² | ≤ 490N/mm² |
| Operation | Automatic | Automatic | Automatic |
| Type of Motor | 3 Phase (ISI) | 3 Phase (ISI) | 3 Phase (ISI) |
| Motor Rotation Speed | 3 KW / 3 HP | 3 KW / 3 HP | 5 HP |
| Motor Power | 1440 R/min | 1440 R/min | 1430 R/min |
| Speed of Working Disc | 8–11 R/min | 8–11 R/min | 8–11 R/min |
| Noise Value (1M Away) | ≤ 80dB(A) | ≤ 80dB(A) | ≤ 80dB(A) |
| Weight | 325 KG | 310 KG | 400 KG |
| Size (LWH) | 850760800 mm | 850760800 mm | 850760800 mm |
| Certification | 2006/42/EC – 2006/95/EC | 2006/42/EC – 2006/95/EC | 2006/42/EC – 2006/95/EC |
